Wallplate: 2 Gang / 4 Hole D-Series/Neutrik Connector Plate, PVC White
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
White
|
|
Part Numbers this model: |
FE-PAN-4H |
| |
|
|
Sales Category: |
Wallplate: Standard |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
*Not Applicable* |
Specification: |
|
|
Connector B: |
*Not Applicable* |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
3921190090 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
Coupler |
|
| |

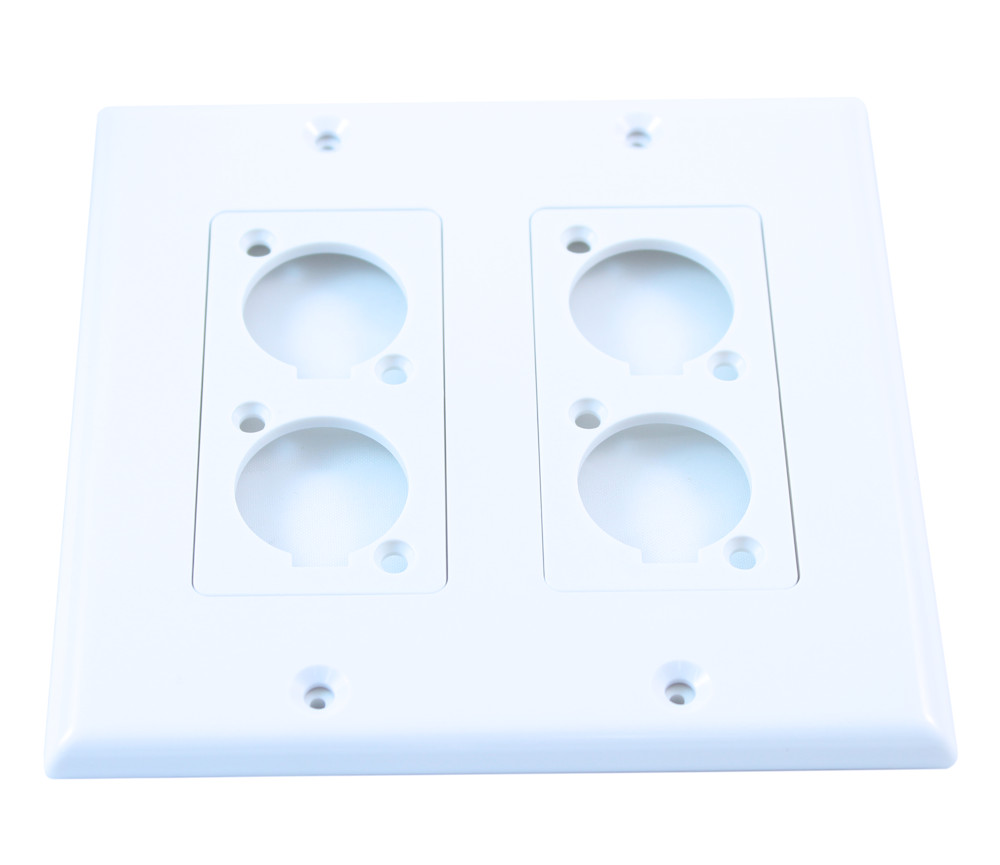

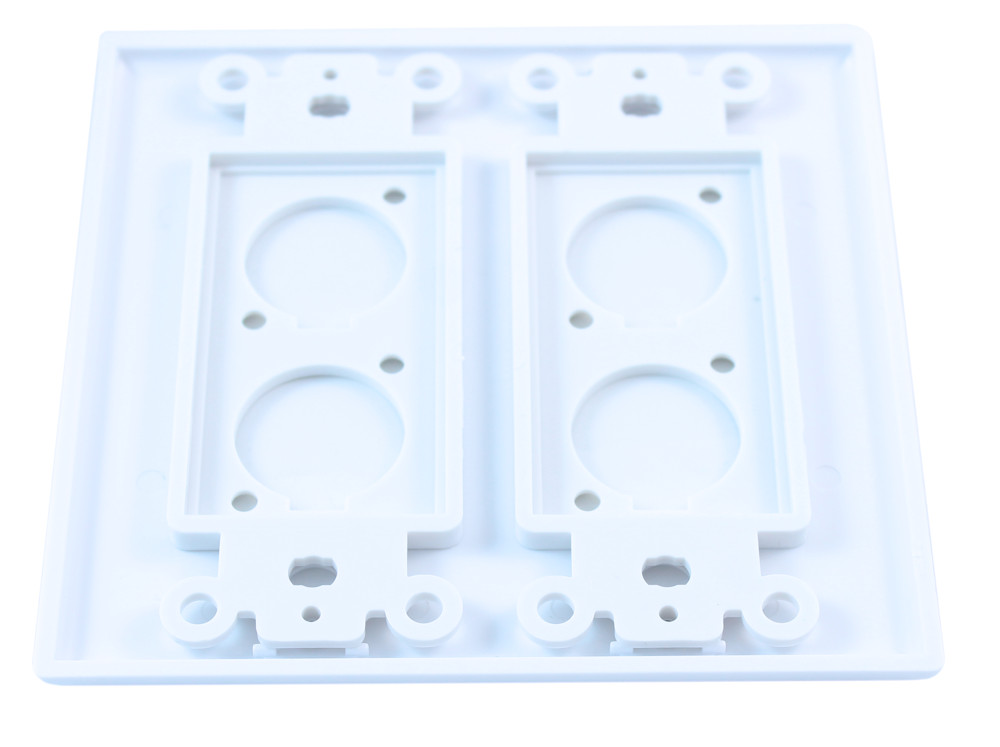

Create your own custom D-Series type wall-plate with our professional white PVC 4 hole receiving plate. "D" Series connectors and plates follow a standard established by Neutrik(TM) for panel-mounting various professional audio/video connectors into a precise 23.8mm hole, and provide for holes to insert 2 nuts and bolts per connector. 4 threaded bolts to mount to electrical box, and 4 short white-head screws to mount to D-series frame included. 8 bolt/nuts needed to attach your D-series connector are NOT included with this kits and are sold separately.
Specifications- White PVC Plastic
- Suitable to attach 4 D-Series connectors (4 hole punch-out)
- Dimensions: 4 9/16W x 4 1/2H inches
- Mounting screws included
- Screws/bolts to attach the D-Series connector to the plate are NOT included
- Mounts to a standard dual-gang wall-box
|
