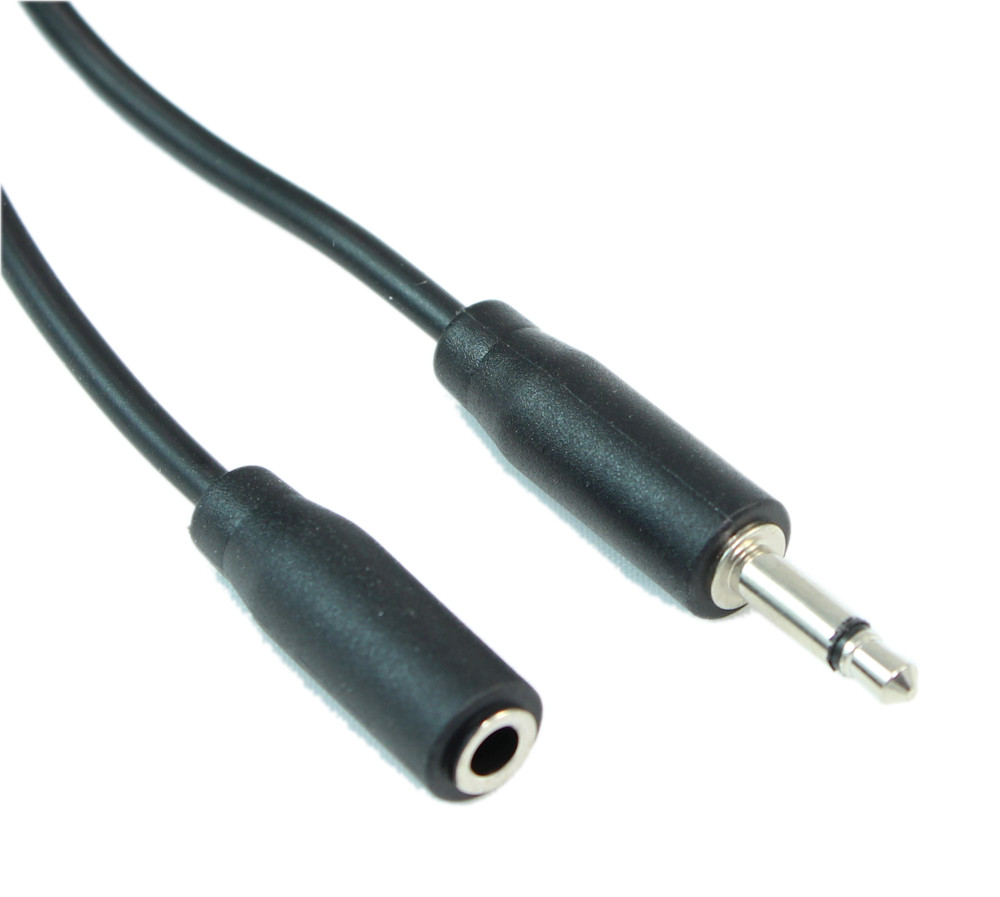

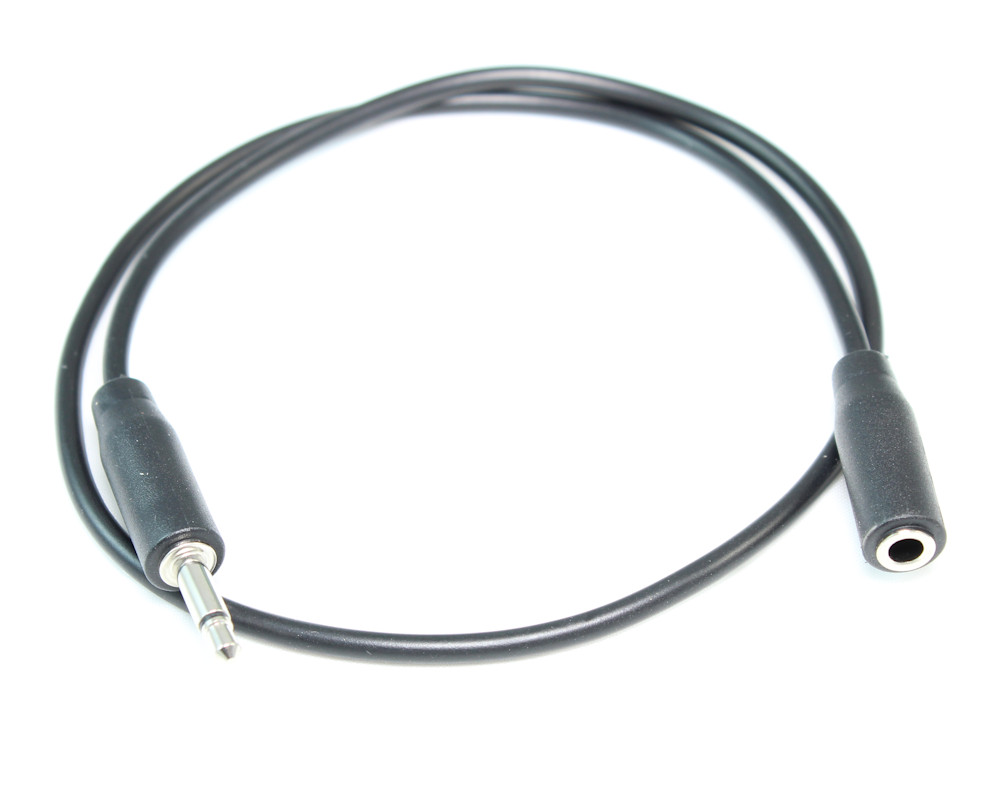

3.5mm SLIM MONO TS (2 conductor) Male to Female Audio EXTENSION Cable


 Lengths Available: 6in, 10in, 1.5ft, 3ft, 6ft, 12ft, 15ft, 20ft, 25ft,
 Colors Available:
 Part Numbers this model: FE-MONO-6IN-MF, FE-MONO-10IN-MF, FE-MONO-01-MF, FE-MONO-03-MF, FE-MONO-06-MF, FE-MONO-12-MF, FE-MONO-15-MF, FE-MONO-20-MF, FE-MONO-25-MF,

 Sales Category: 3.5MM & 2.5MM Cables and Adapters  Wire Gauge (AWG): 28 AWG
 Connector A: 3.5mm TS Mono Male  Specification:
 Connector B: 3.5mm TS Mono Female  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Mono Images Length/Size Shown: 10 IN
# Positions: Shielding:
Convert From/To: Type:

EXTENDS the connection for any MONO (2 conductor - 1 channel and ground) audio devices. Basic shielding (at the CONNECTOR ENDS ONLY). The cable itself is UNSHIELDED. This cable has PVC jacket, molded ends. This product is NOT shielded. This cable has been redesigned with new slimmer PVC molded ends to fit into tight spaces. Also suitable to be used to extend an INFRA-RED (IR) emitter cable.

Specifications:
  • Connector: 3.5mm (1/8'') Male to FEMALE MONO 2 Conductor
  • Outer Diameter of Cable: 3.00mm
  • 2 Conductor, 28AWG
  • Nickel Plated
  • Insulation Type: PVC 1.00mm
  • (SLIM) Outer Diameter of Molded Connector: 8.4mm
  • Shielding: No (Connector ends ONLY)
  • Connector end is nickel plated

NOTE: This cable is NOT suitable for STEREO (left/right) channel audio. This is a SINGLE CHANNEL (MONO) EXTENSION cable.
NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
