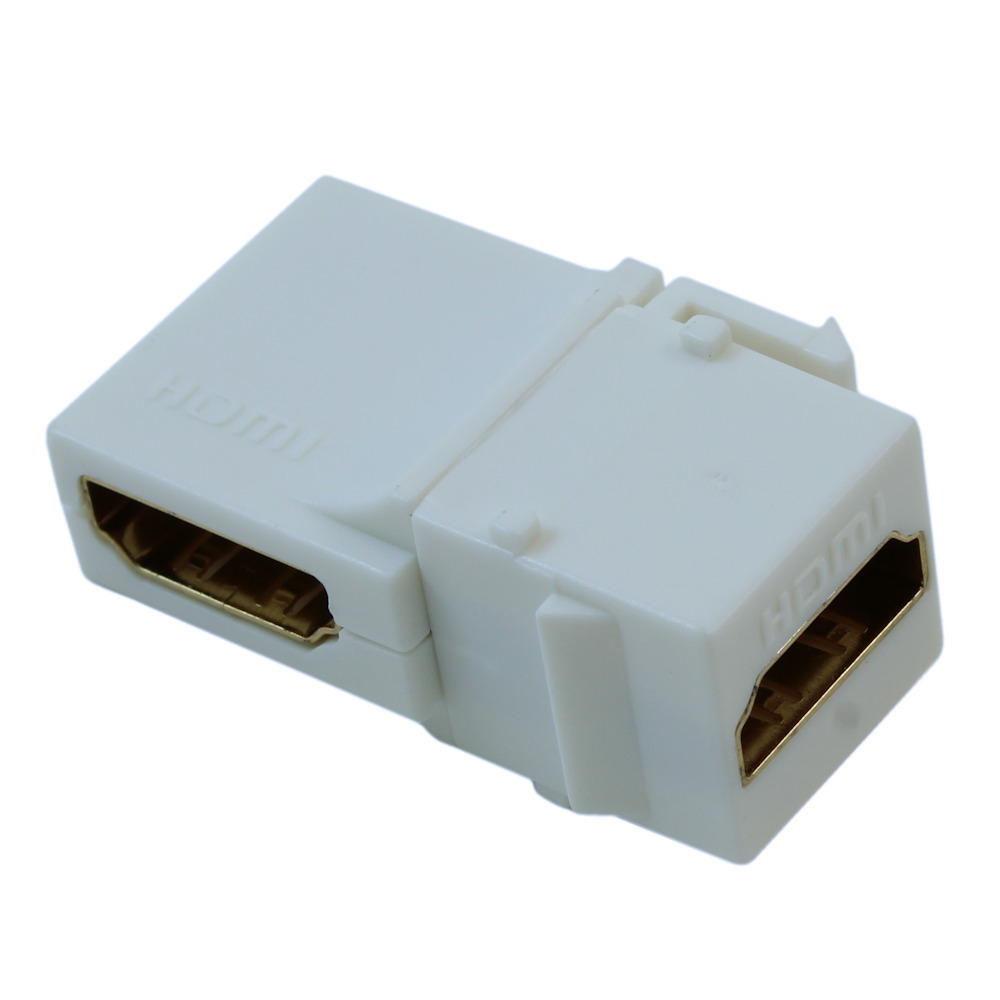

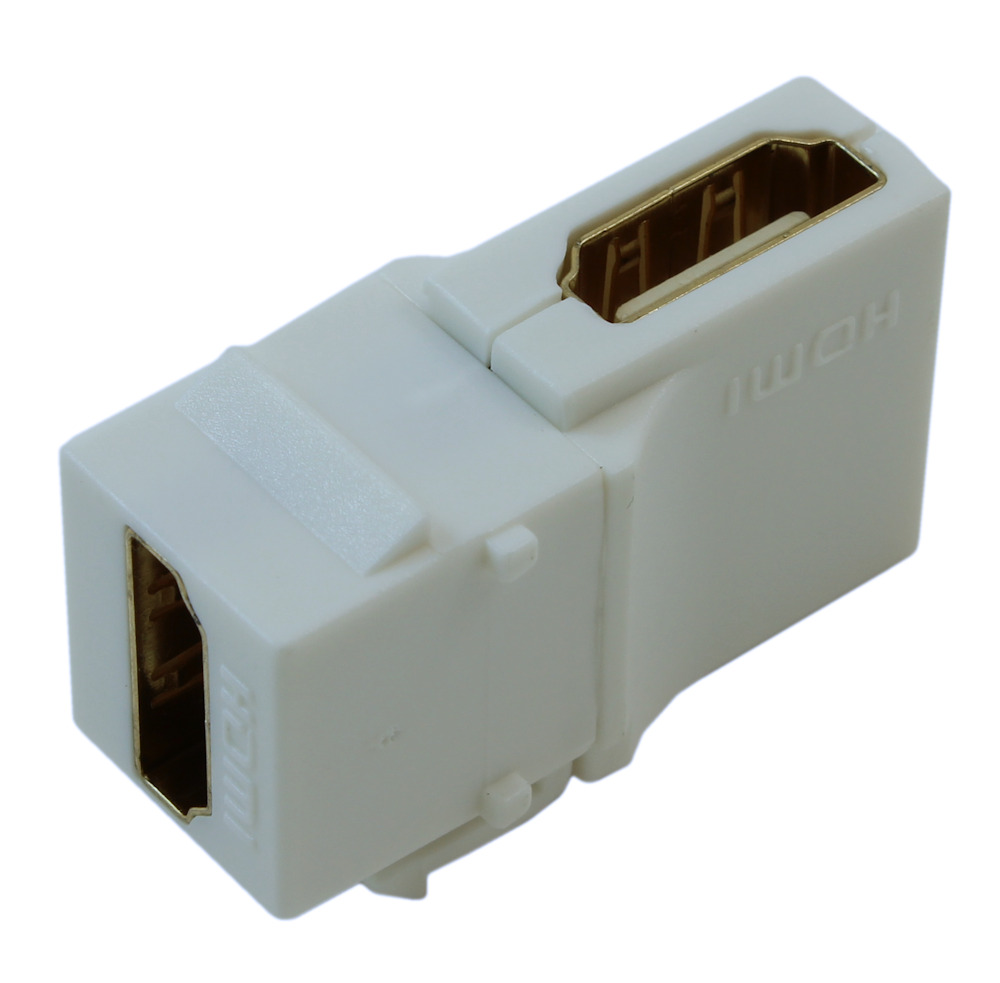

Keystone Jack Insert/Coupler HDMI Angled, Gold Plated, Female/Female, White
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
White
|
|
Part Numbers this model: |
FE-KEY-HH90-WH |
| |
|
|
Sales Category: |
Wallplate: Keystone |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
HDMI Standard Type A Female |
Specification: |
|
|
Connector B: |
HDMI Standard Type A Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8536694030 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |
Connect your standard HDMI (male/male) cable through the wall and into the back of this coupler-type connector, then your shorter length of HDMI cable (male/male) to the front! Requires standard keystone face plate, and low-voltage gang box (sold separately - available here! Build your OWN Keystone wallplate combination!
- Version 1.4a Certified
- Female HDMI on both front and back
- Keystone is rotated 90 degrees to insert into any standard keystone faceplate
- Gold-plated connections
- 90 Degree angle allowing for installation in TIGHT locations
Installation Caution: The rear of this HDMI keystone insert is oriented at a 90 degree upward angle. The use of multiple keystone inserts with this particular HDMI angle connection may cause the HDMI port to become inaccessible if such other keystone inserts are ALSO mounted vertically. This will then "block access" for such HDMI cable to be successfully connected
|
