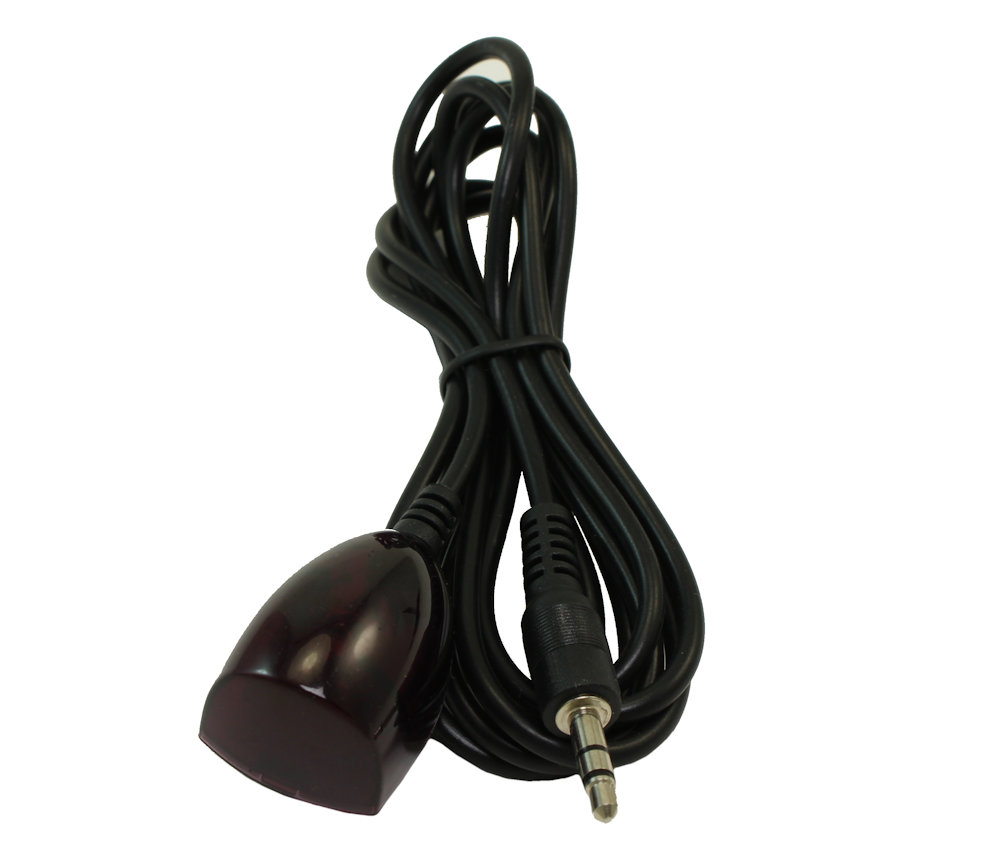

5ft Infra-Red (IR) SIGNAL RECEIVER EYE Cable with RECEIVER Lens

Lengths Available:
Colors Available:
Part Numbers this model:	FE-IRREC-05

Sales Category:	Infra Red Cables & Accessories	Wire Gauge (AWG):	Not Specific / Not Applicable
Connector A:	Not Applicable	Specification:
Connector B:	Not Applicable	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	5 FT
# Positions:		Shielding:
Convert From/To:		Type:

This IR Receiver Extender cable is a receiver device for use with infrared remote controls. It plugs into a source device or IR extender and serves as the IR sensor for remote control input. This IR extender cable should be used ONLY with equipment (such as a cable box, satellite box, etc) that has an external 3.5mm IR receiver connector.

Specifications:

Frequency Supported: 38-56kHz
Voltage: 5 volts.
Dimensions: 23/32" wide by 1/2" high by 1 3/16" long (1 19/32 including cable boot)
Connector Type: 3.5mm "stereo" plug
Cord Length: 55"

NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
