RJ45 Shielded Modular Plug (toolless) for CAT8 (Single Piece)
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
|
|
Part Numbers this model: |
FE-C8-RJ45 |
| |
|
|
Sales Category: |
CAT 7 Networking Cables |
Wire Gauge (AWG): |
26 AWG |
|
Connector A: |
RJ45 Ethernet Male |
Specification: |
|
|
Connector B: |
*Not Applicable* |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8536694010 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |

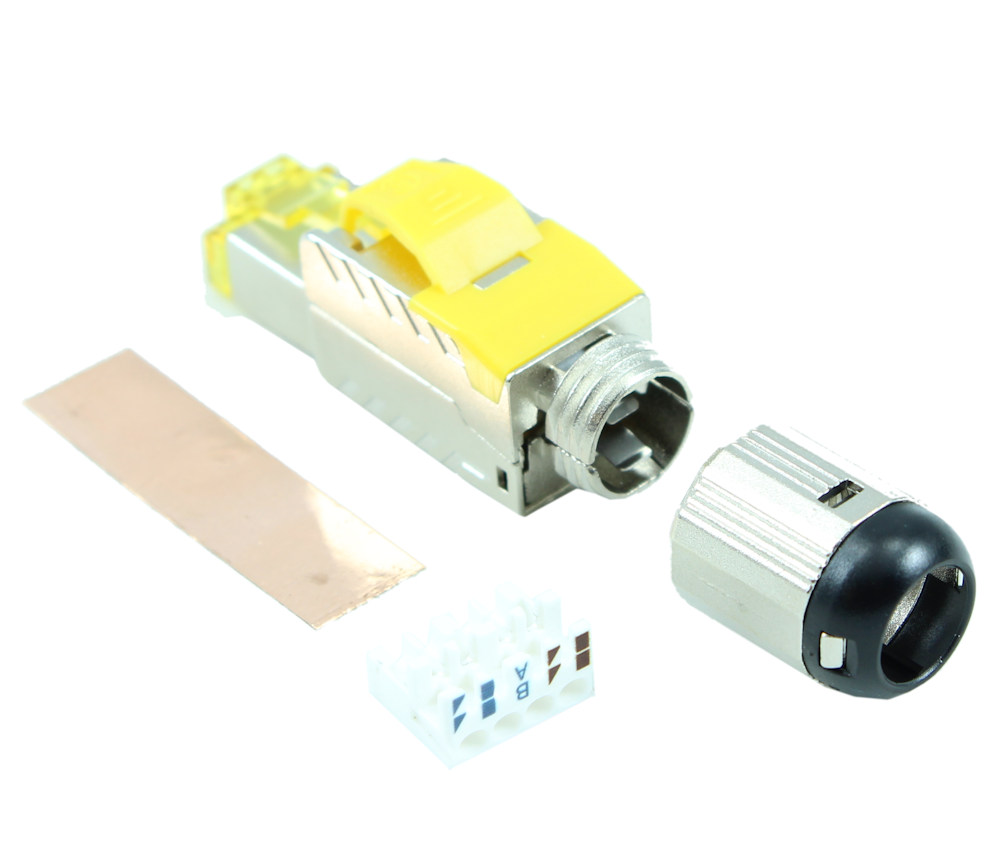

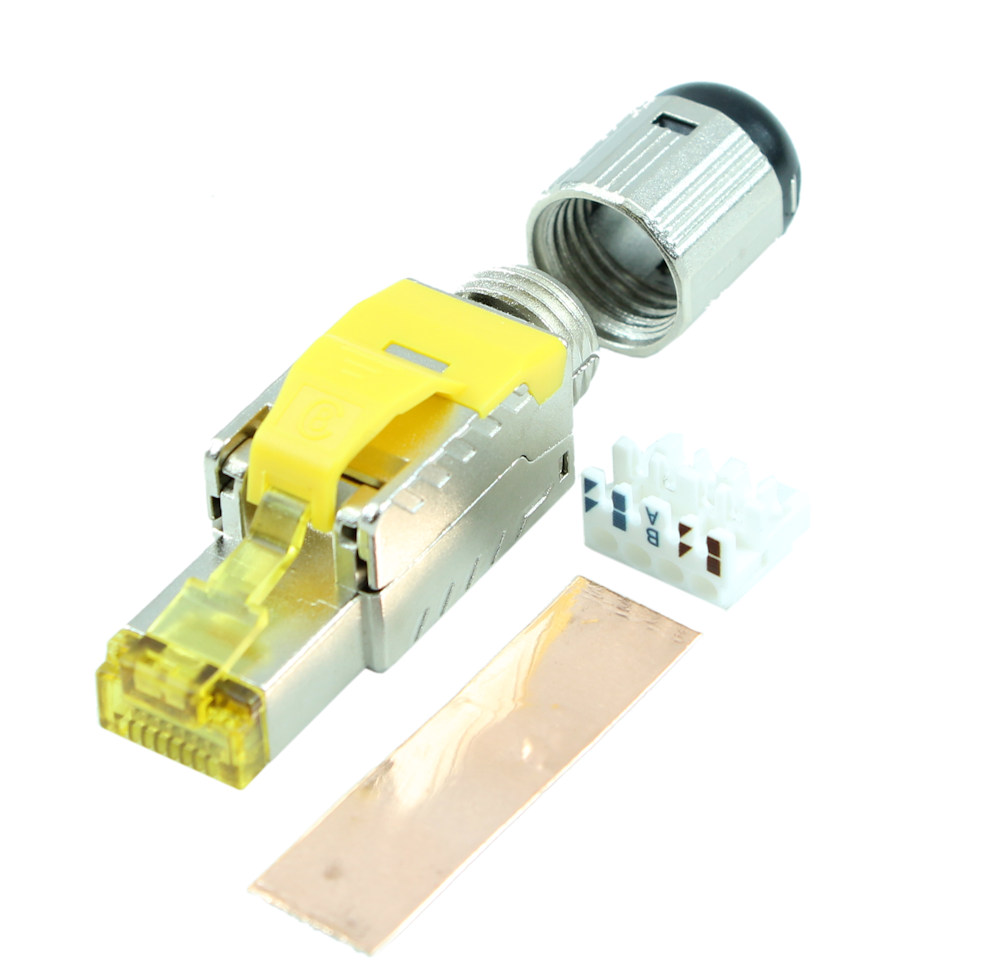

Cat.8 RJ45 connectors are designed to work specifically with Cat.8 Cable, the RJ45 contacts are gold plated, wire alignment insert provides an efficient termination without any need of tools, we do recommend to use a cable striper to expose the inner conductors. The hosing of the connectors is fully shielded to avoid corrosion and to protect from EMI (ElectroMagnetic interference).
Specifications and Details- Applicable wire 22~26AWG
- Cable jacket diameter 6.5mm ~ 8.5mm
- Compatible with solid or stranded wire
- No tool is required to terminate
- Supports 40Gbps ( 4 times faster than Cat.6A )
- Excellent performance with POE++ applications
- Copper Insulation Foil included for optimal shielding
- UL/RoHS
|
