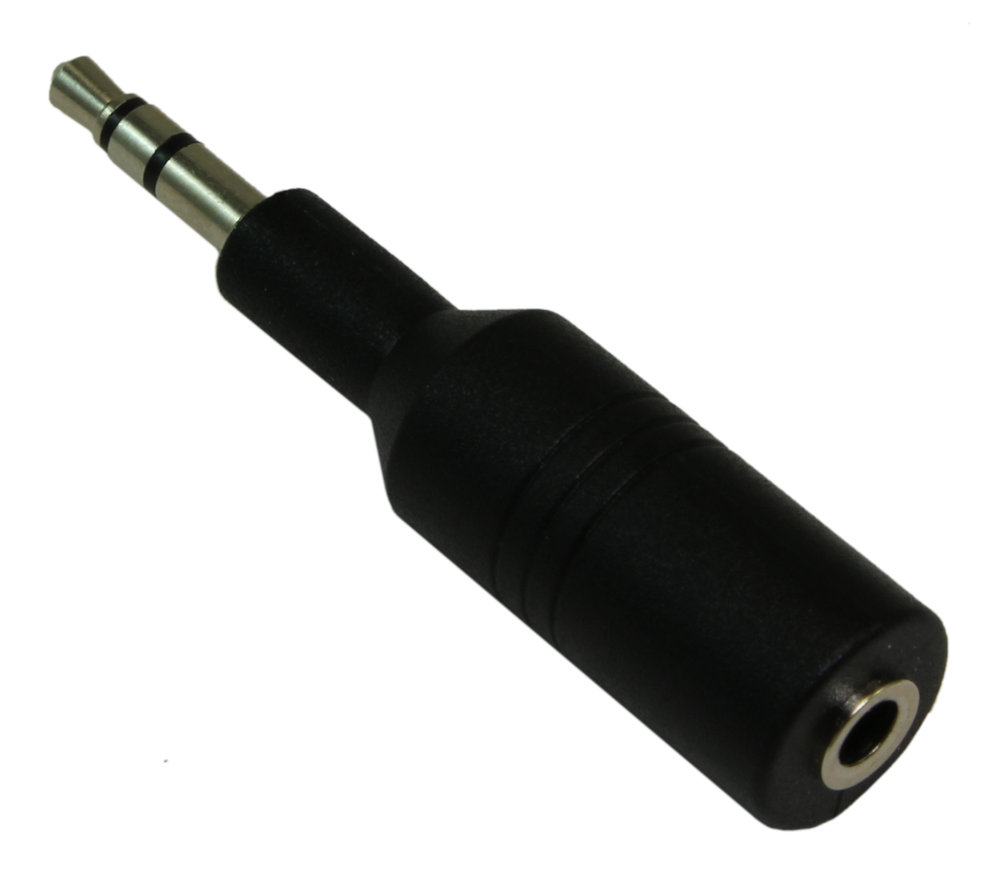

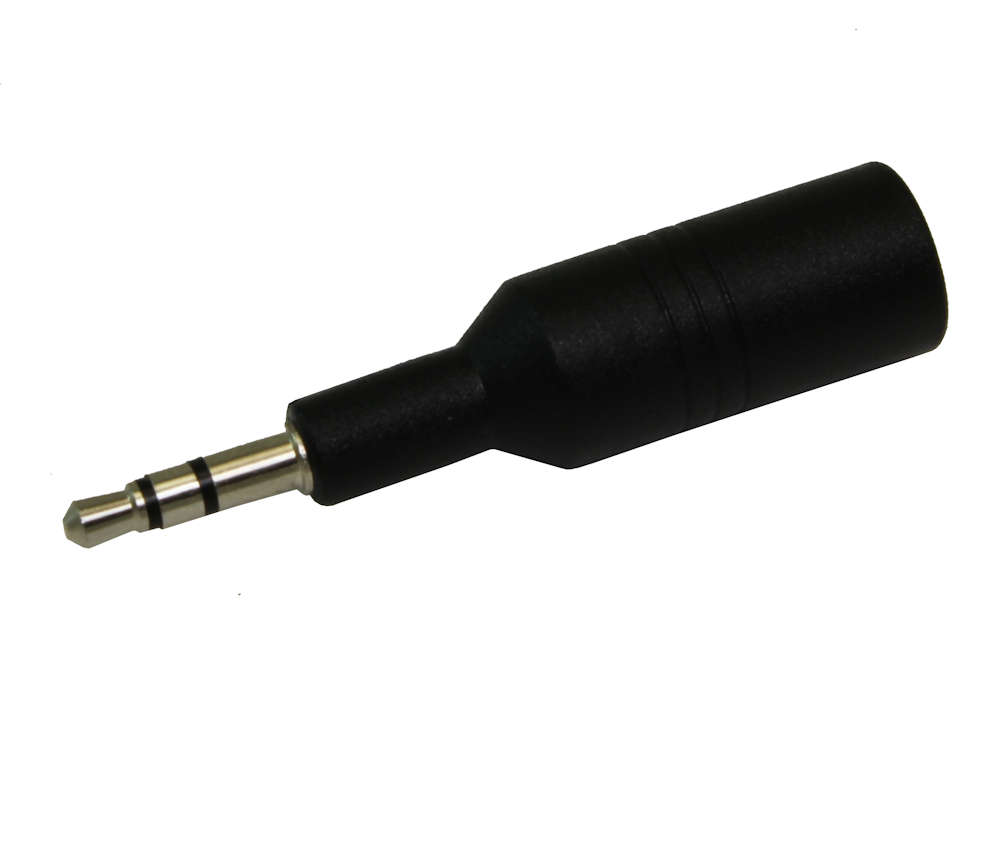

3.5mm Male Stereo (TRS) to Female 4 Conductor (TRRS) CTIA or OMTP Adapter
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
|
|
Part Numbers this model: |
FE-ADT-349 |
| |
|
|
Sales Category: |
3.5MM & 2.5MM Cables and Adapters |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
3.5mm TRS Stereo Male |
Specification: |
|
|
Connector B: |
3.5mm TRRS 4 Conductor Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8536694010 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |
This is a specialized adapter that will allow you to connect a 4 conductor TRRS device (typically a headset with left/right audio and microphone) in a stereo only port (left/right audio only, eliminates the microphone connection). Please note that important detail: This adapter will "ground out" (eliminate) the microphone connection (See wiring standard or tech drawing for details).
This specific adapter uses the CTIA/AHJ OR OMTP wiring standard typically used by most computers, headsets, and apple devices. Adapter will universally support BOTH wiring standards as pins 3 & 4 on the 4 conductor female connector will BOTH be connected to pin 3 on the TRS Male Stereo connector.
Specifications:- 3.5mm Stereo MALE (3 conductor TRS) to 3.5mm 4 conductor (TRRS) FEMALE Extender/Adapter
- Nickel Plated conductors
- CTIA/AHJ or OMTP Wiring Standard (see tech document): 1-1, 2-2, 3-3+4
- Outer Diameter Stereo End: 6.5mm (Slim Design)
- Outer Diameter TRRS End: 12mm
|
