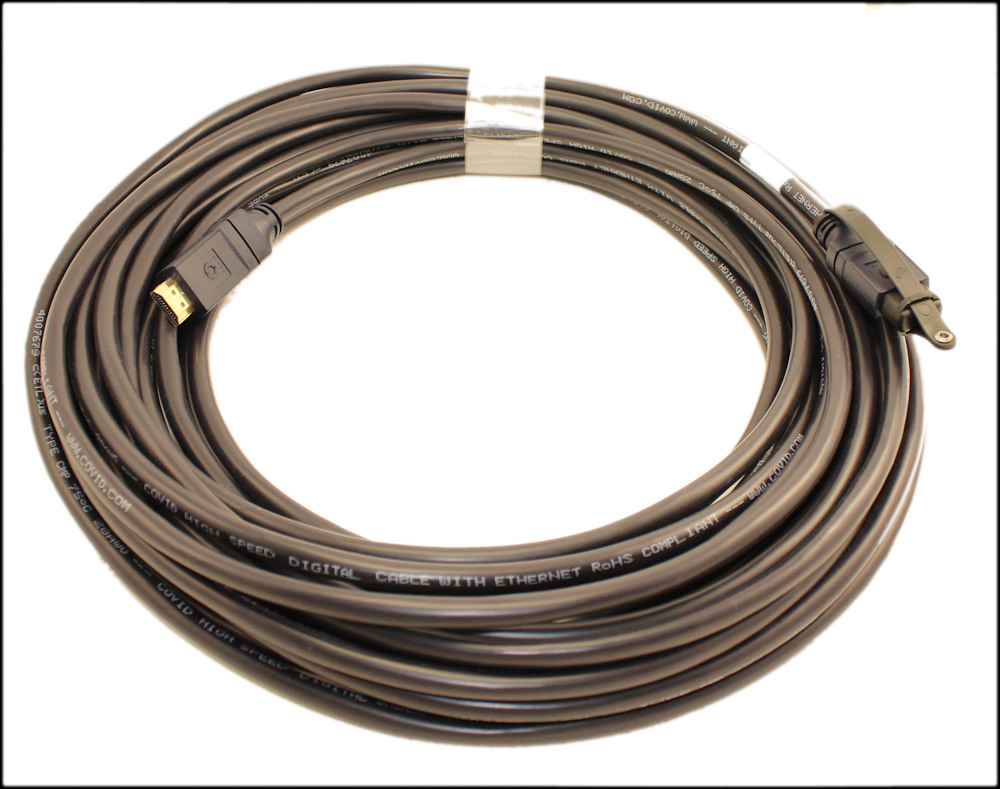

25ft **PLENUM** HIGH SPEED HDMI Cable with Ethernet 28AWG, Gold Plated
|
|
|
|
|
|
|
Lengths Available: |
25ft, 35ft, 50ft, 75ft, 100ft, ea, |
|
Colors Available: |
|
|
Part Numbers this model: |
CV-P-HDA20-25, CV-P-HDA20-35, CV-P-HDA20-50, CV-P-HDA20-75, CV-P-HDA20-100, CV-P-P-HD2-25R, |
| |
|
|
Sales Category: |
HDMI Cables |
Wire Gauge (AWG): |
28 AWG |
|
Connector A: |
HDMI Standard Type A Male |
Specification: |
|
|
Connector B: |
HDMI Standard Type A Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |

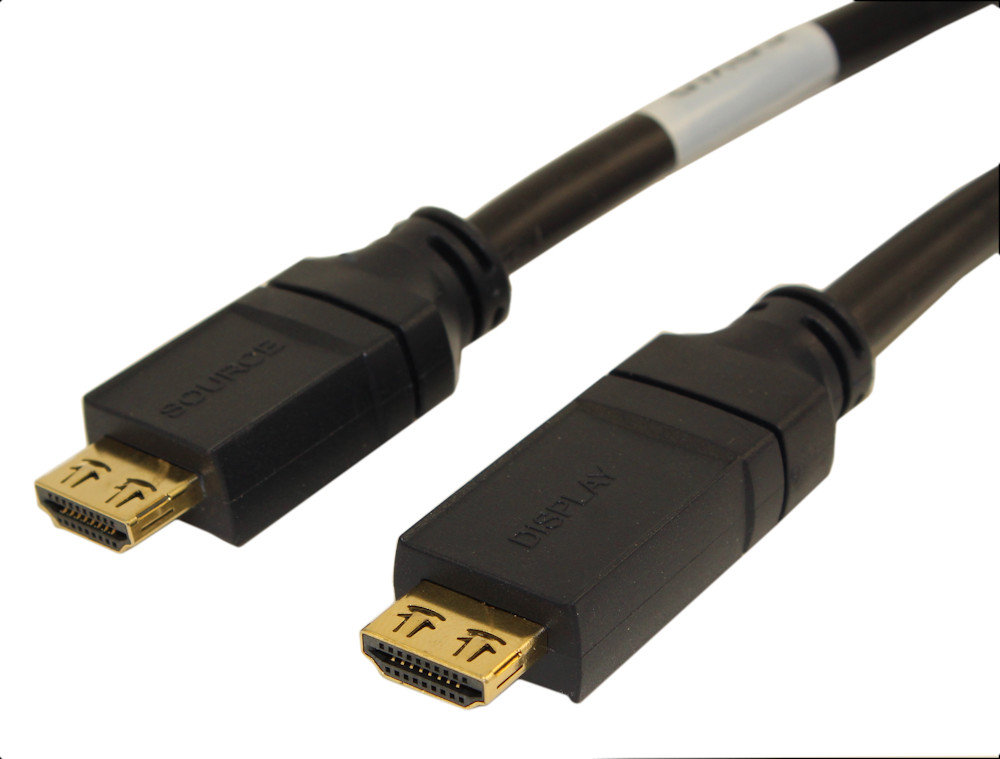

This uni-directional HDMI cables (one end of the cable is marked SOURCE, the other end DISPLAY) allows you to run long length HDMI runs into PLENUM SPACES.
HDMI Version 1.4A Specification
- HDMI Ethernet Channel
- Audio Return Channel (ARC)
- Full 3D Support
- Support for ANY TV refresh rates
Cable Specifications and Additional Features:
- Plenum Rated (UL Number: E197461B)
- Teflon/PVC jacket insulation is fire-retardant and is low-smoke rated PVC meeting National Fire Protection Assoc (NFPA) 90A and Article 800 of the NEC
- Wire Gauge: 28 AWG
- Built-in Equalizer/Booster at DISPLAY END
- Gold Plated 1u (All 19 wires and Ground Shroud)
- Silver-tinned PURE copper wire for maximum conductivity - without ANY harmful lead (RoHS)
- Triple Shielded, EMI (Foil, braid, foil)
- 100% Backward compatible with all previous HDMI versions
NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
|
