UNDER CABINET Mount Bracket to 43", VESA to 200, Black


 Lengths Available: 13-42in, each,
 Colors Available: Black
 Part Numbers this model: LU-LDA18-222, BE-502919,

 Sales Category: TV Mounts  Approx TV Size / Weight: 19 - 43, 44lbs Max
 VESA Type / Style: FIXED / UNDER CABINET  Vesa Specs (WxH) mm: 75x75 100x100 200x200
   FIXED  Mount Holes (WxH): 3" x 3" , 4" x 4" , ~8" x ~8"  Supports Curved TVs?: No

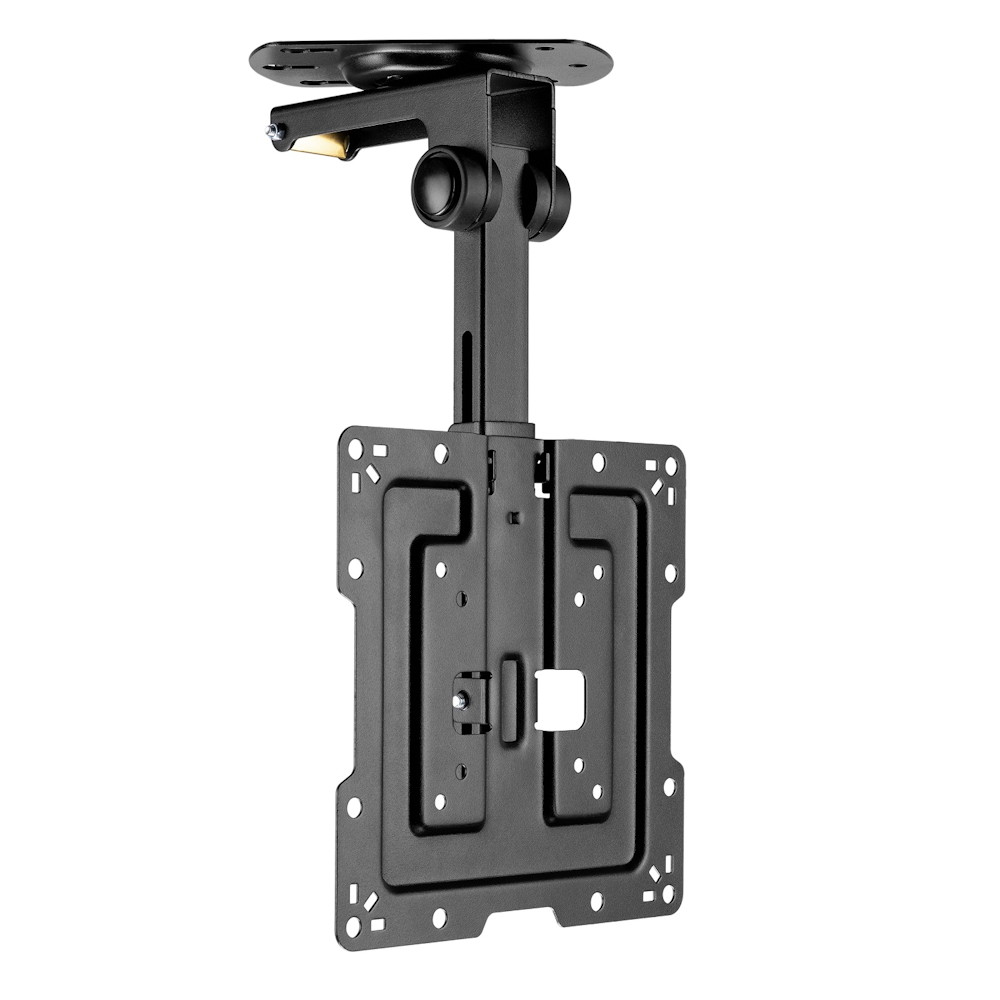

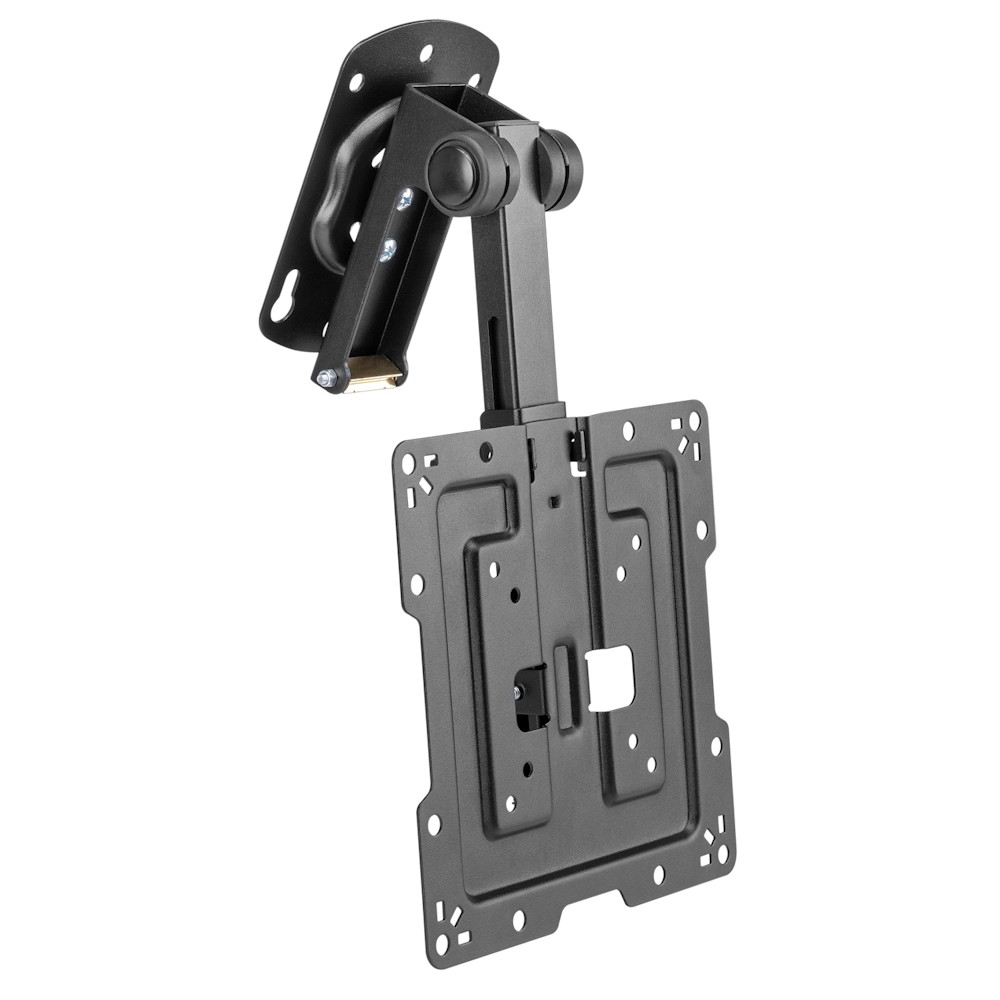

With a fold-up locking design, the LCD-CM311 Economical Folding Ceiling Mount offers the perfect solution for mounting TVs below cabinets, in work areas, on pitched ceilings and a great solution for home installations. Lightweight aluminum and steel construction with ample adjustability that includes a 360 degree swivel ceiling mount can perfectly position 13” to 27” TVs with max load capacity of 20kg/44lbs. Adjustable vertical rail makes it easy to adjust the TV to preferred height. With outstanding quality and affordable prices, this is the perfect mount for small, tight locations such as under kitchen counters or angled walls.

Compatibility:
  • Suitable for computer monitors and small LCD TV's
  • Maxium Weight Capabity: 20Kg (44lbs)
  • Will fit most small to mid-size flat panel LCD monitors with mounting VESA Standard patterns 50/75/100

    Dimensions:
  • Wall Mount Plate Width: 4"
  • Mount Plate Height: 5-7/8"
  • TV Mount Plate: 4-3/4"x6-1/6" (Square)
  • Measurements are from edge to edge. Mounting points for bolts will be shorter.

    Range of Motion:
  • Tilt: 90 to 0 degrees
  • Swivel: +-45 degrees

    Design & Construction:
  • Solid tough steel construction
  • Durable scratch resistant
  • Black Finish
  • Easy installation

    Included in Box:
  • Mount
  • Mounting hardware
  • User manual

    Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
    Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits

    NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
