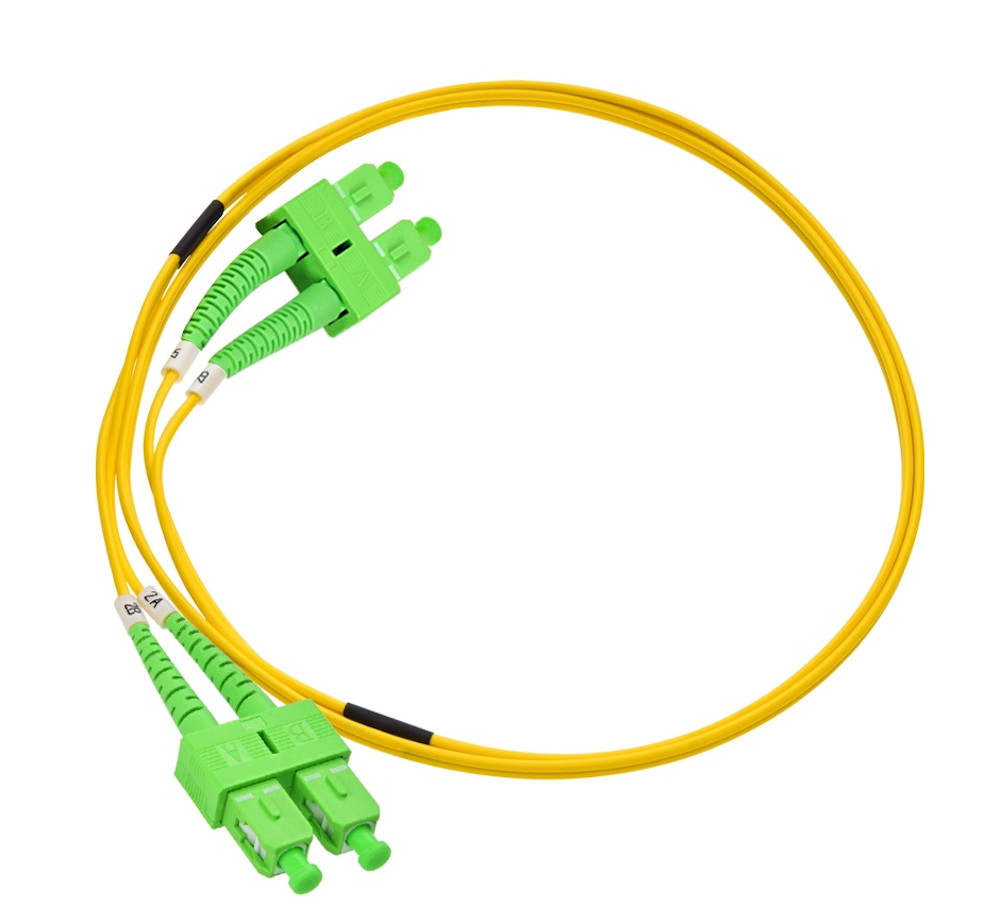

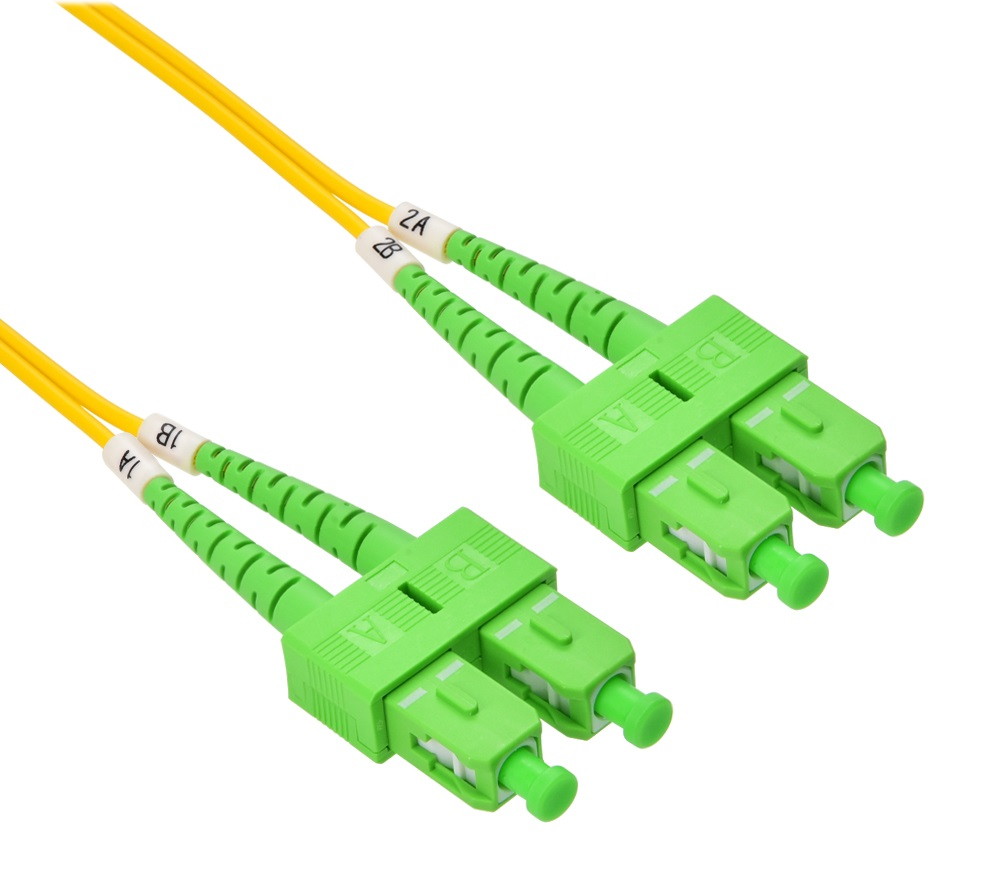

2 Meter SC/APC Single-Mode Duplex OFNR 9/125 Fiber Optic Networking Cable
|
|
|
|
|
|
|
Lengths Available: |
1m, 2m, 3m, |
|
Colors Available: |
|
|
Part Numbers this model: |
BE-105113, BE-105114, BE-105115, |
| |
|
|
Sales Category: |
Fiber Optic Jumpers |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
Fiber Optic SC Connector |
Specification: |
|
|
Connector B: |
Fiber Optic SC Connector |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
2 M |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
Singlemode, Duplex |
|
| |
Features and Specifications:- Used to connect patch panels and/or network devices that utilize SC/APC to SC/APC style connectors and require 9/125 Single mode cabling
- Flexible boots are able to be bent and set in different orientations to accommodate tight spaces.
- A/B Markers easily identify the TX and RX connector on each end of the assembly
- Connectors utilize a UPC polish
Connector Type: SC-SC Single mode
Polishing: APC
Return Loss: 60dB
Insertion Loss: 0.30 dB
Ferrule Material: Ceramic (zirconia)
Ferrule Diameter: 1.25 mm / 2.5 mm
Body type: Duplex
Nominal Diameter Core: 9/125 µm
Jacket Material: OFNR
Temperature Range: -20C +70C
NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
|
