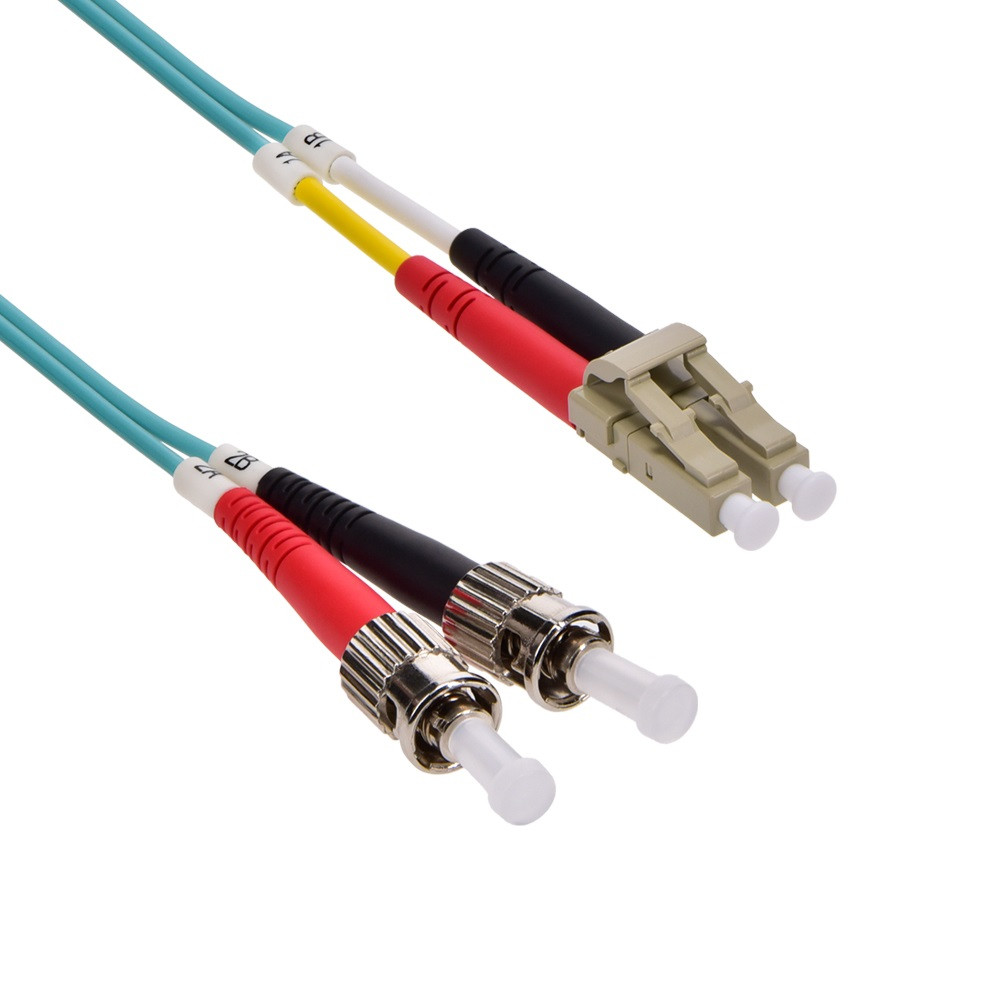

5 Meter LC/ST Multi-Mode Duplex OM3 OFNR 2.0mm 50/125 Aqua Fiber Optic Network Cable

Lengths Available:	1m, 2m, 3m, 5m, 10m, 15m,
Colors Available:
Part Numbers this model:	BE-102628, BE-102629, BE-102630, BE-102631, BE-102632, BE-102633,

Sales Category:	Fiber Optic Jumpers	Wire Gauge (AWG):	Not Specific / Not Applicable
Connector A:	Fiber Optic LC Connector	Specification:
Connector B:	Fiber Optic ST Connector	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	5 M
# Positions:		Shielding:
Convert From/To:		Type:	Multimode, OM3

Our LC-ST OM3 fiber optic patch cables are constructed of high quality ceramic ferrules and connectors, and 100% tested for quality assurance. Each cable includes test report.

Features and Specifications:

Connector Type: LC-ST Multimode

Polishing: UPC

Return Loss: 55 dB

Insertion Loss: 0.30 dB

Ferrule Material: Ceramic (zirconia)

Ferrule Diameter: 1.25 mm / 2.5 mm

Cabled Optical Fiber: OM3

Nominal Diameter Core: 50/125 µm

Jacket Material: OFNR

Jacket Color: Aqua

Operation Temperature Range: -20°C +70°C
NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
