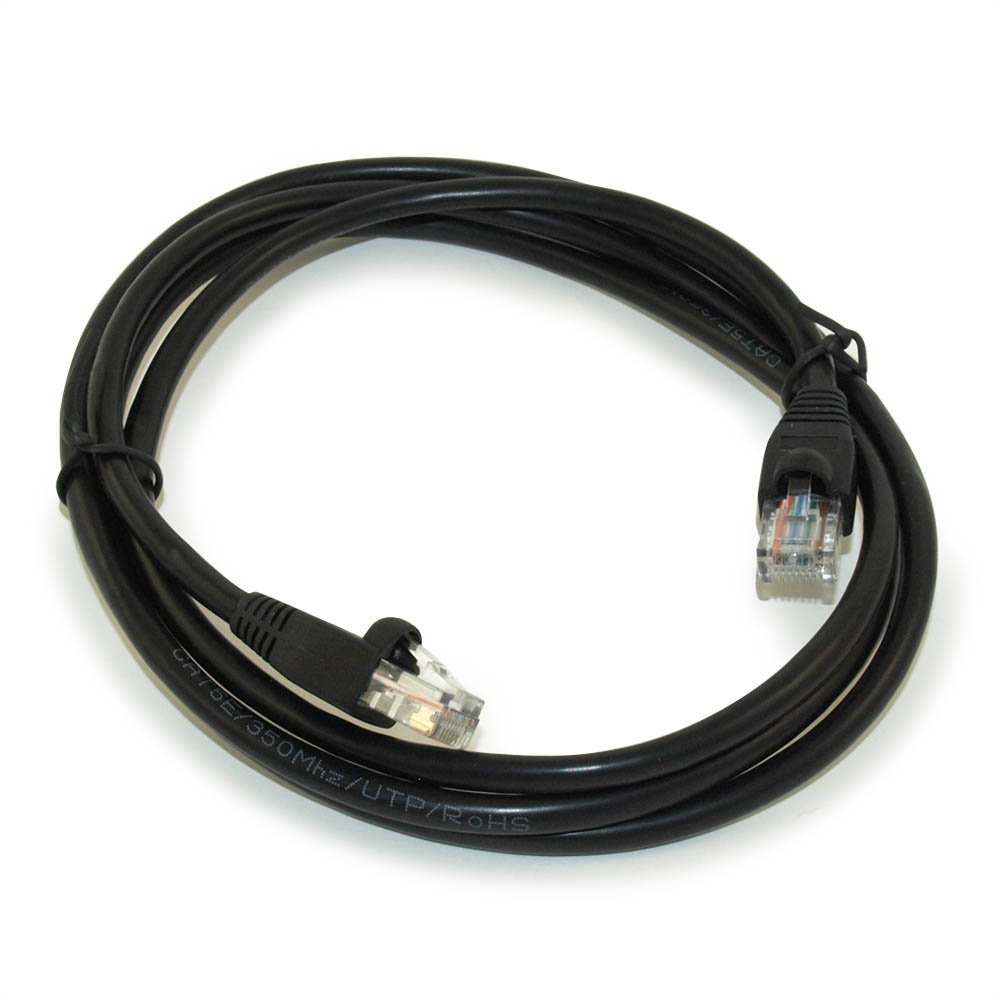

5ft Cat5E Ethernet RJ45 Patch Cable, Stranded, Snagless Booted, BLACK
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
Black
|
|
Part Numbers this model: |
BE-100504BK |
| |
|
|
Sales Category: |
CAT 5E Networking Cables |
Wire Gauge (AWG): |
26 AWG |
|
Connector A: |
RJ45 Ethernet Male |
Specification: |
|
|
Connector B: |
RJ45 Ethernet Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
5 FT |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |
Connects any CAT5 or CAT5E (Enhanced) application such as computer to hub, patch panel or wall jack. This 350MHz CAT5E PVC stranded patch cord meets TIA/EIA 568A specifications, and support all CAT5E and other high speed applications. Uses stranded wires for added cable flexibility.
Technical Specifications:- 26AWG Copper twisted pairs
- Suitable for any 10Mbit, 100Mbit network standards up to 330ft segment runs
- 350 Mhz Category 5E, exceed IEEE standards suitable for 100Mbit networks. May support 1Gbps in shorter lengths
- Unshielded Twisted pairs (UTP) suitable for most business and home network installations
- CM NEC Rated for In-wall installation (Home or business)
- Meets EIA/TIA TSB-40A for Stranded 568B standards
- 50u Gold Plated contacted

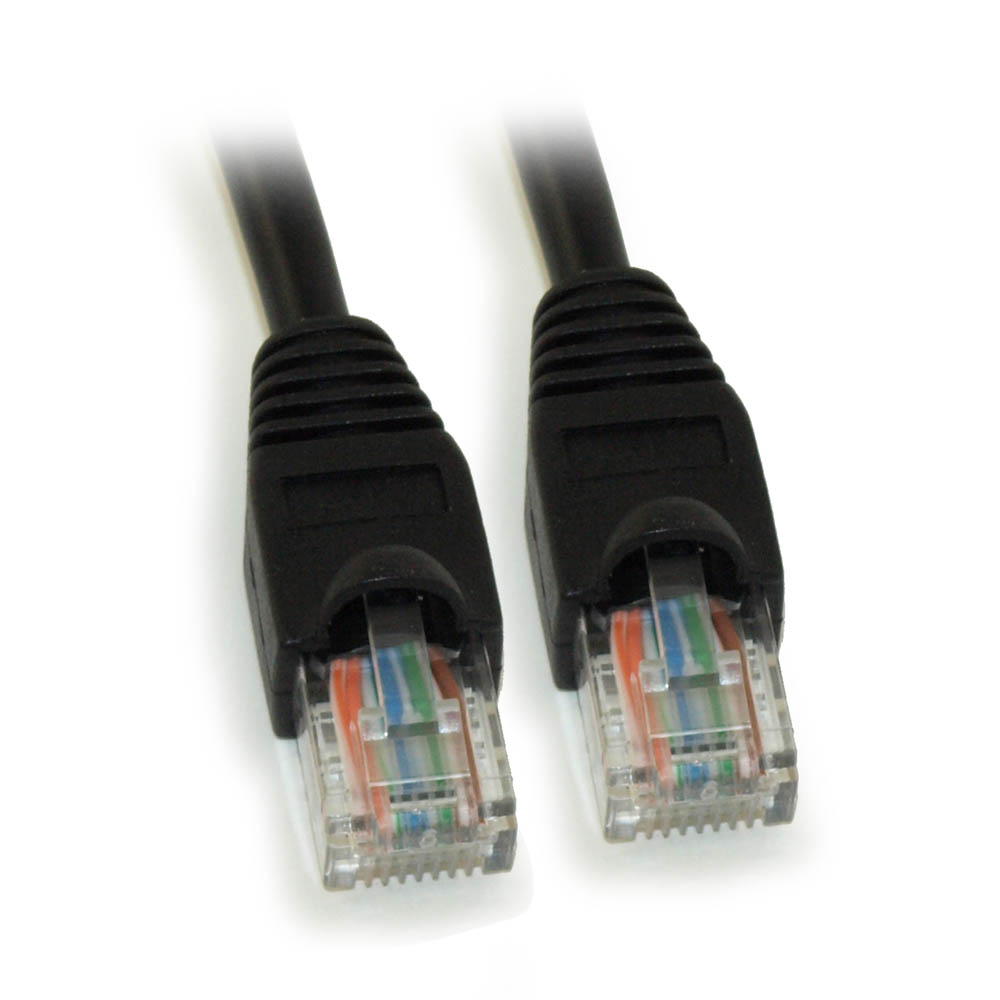

- Molded Strain Relief boot connectors
- RoHS Compliant
- See TECH DOC for drawing and additional technical information
- NOT UL Listed, but meets UL standards
NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
|
