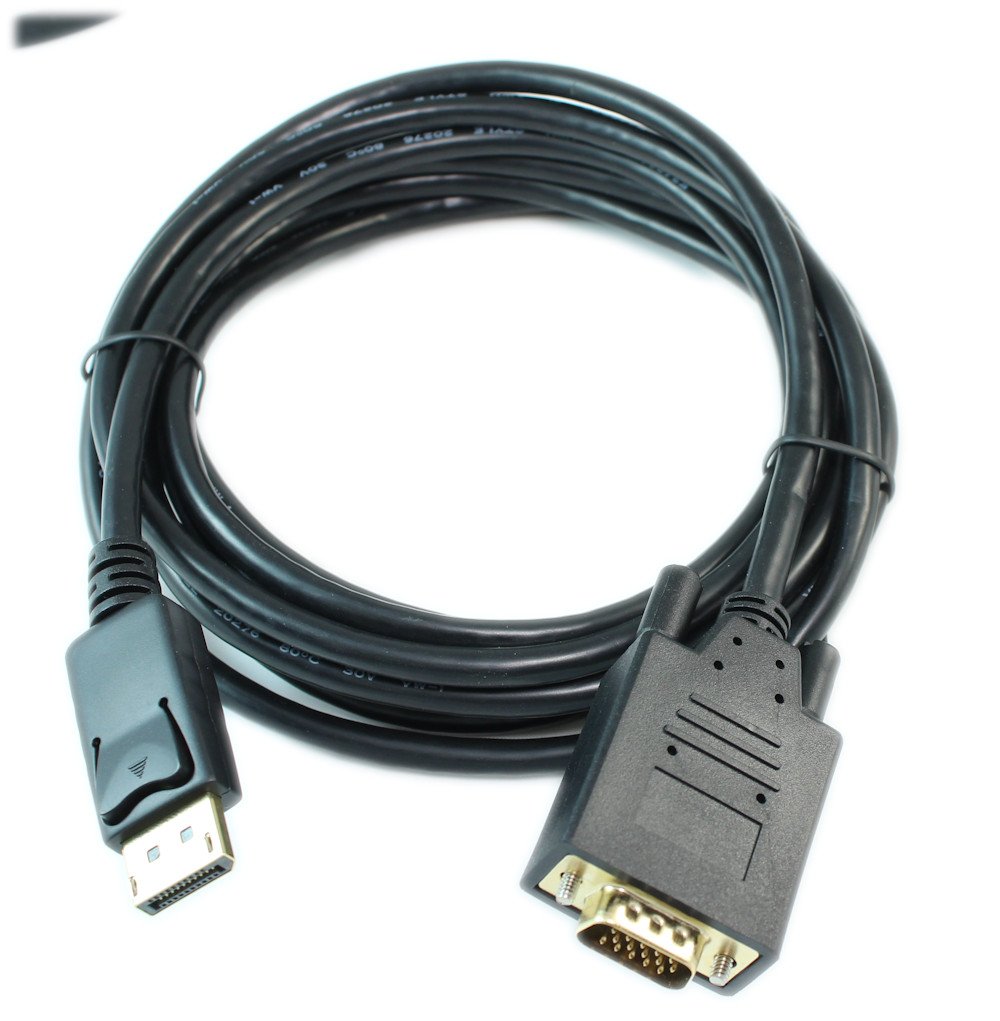

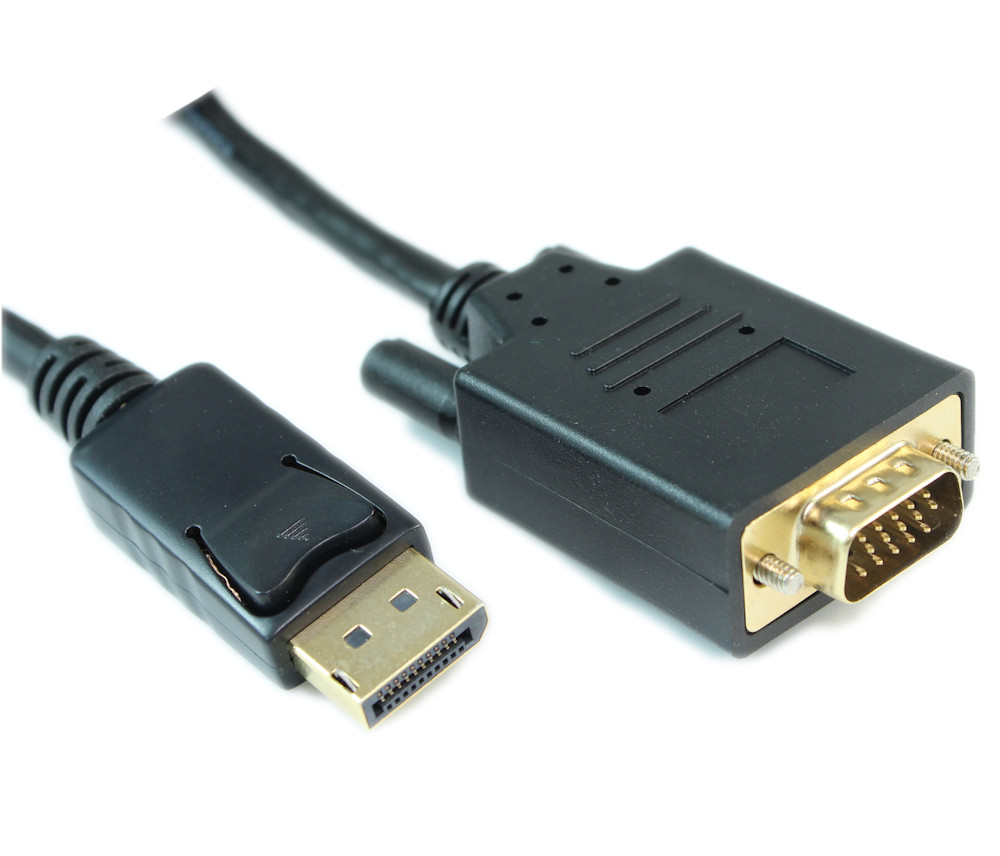

DisplayPort to VGA Cable 28AWG Gold Plated, Black

Lengths Available:	3ft, 6ft, 10ft, 15ft,
Colors Available:	Black, Black,
Part Numbers this model:	BC-DPVGA-3MM, BC-DPVGA-6MM, BC-DPVGA-10MM, BC-DPVGA-15MM,

Sales Category:	Display Port and Mini-Display Port	Wire Gauge (AWG):	28 AWG
Connector A:	DisplayPort Male	Specification:
Connector B:	VGA HD15 Male	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	15 FT
# Positions:		Shielding:	Double Shi
Convert From/To:		Type:

Compliant with DP1.2 specification. Connect a DisplayPort equipped computer to a monitor or projector with VGA connector. Support resolutions up to 1920 x 1200@60Hz. Gold-plated connector provides superior transmission, high reliability and durability. DisplayPort connector with latches keeps cable securely plugged in. All relevant materials are complied with RoHS directive.

Specifications:

Connector A: DisplayPort Male
Connector B: VGA Male (HD15 Pin)
Conductors: 28 AWG. x 3 Pairs + 28 AWG. x 5C
Cable Color: Black Color
