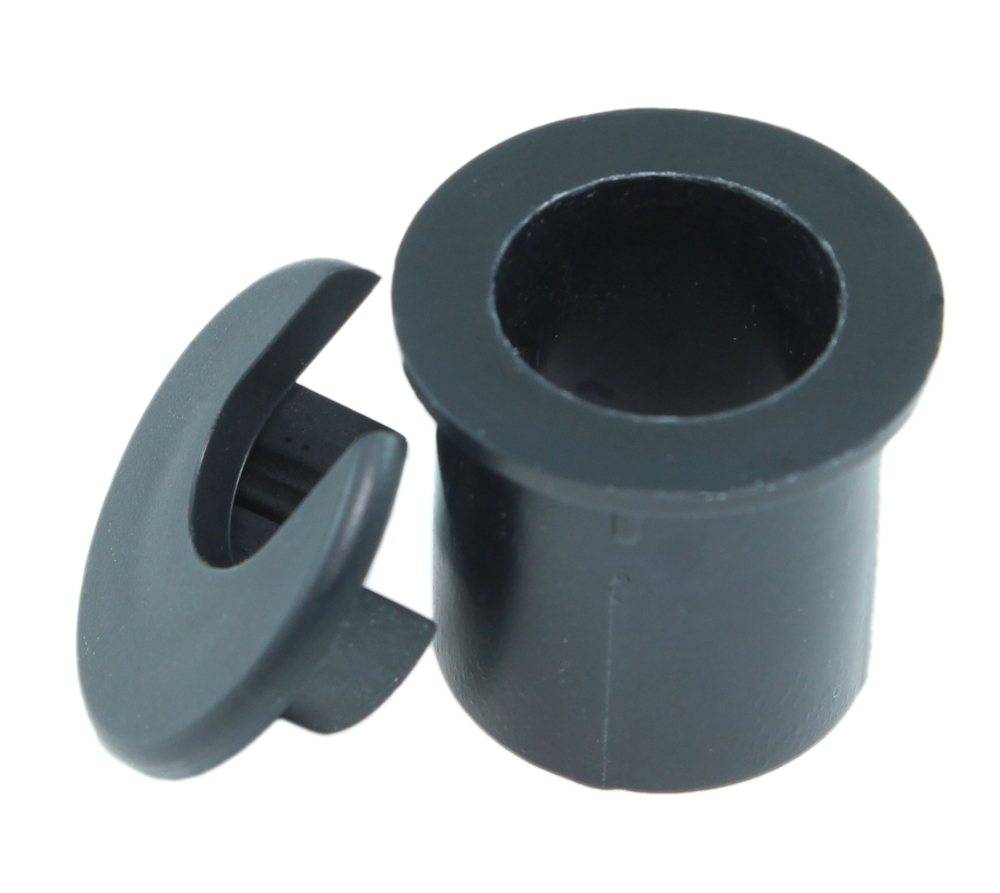

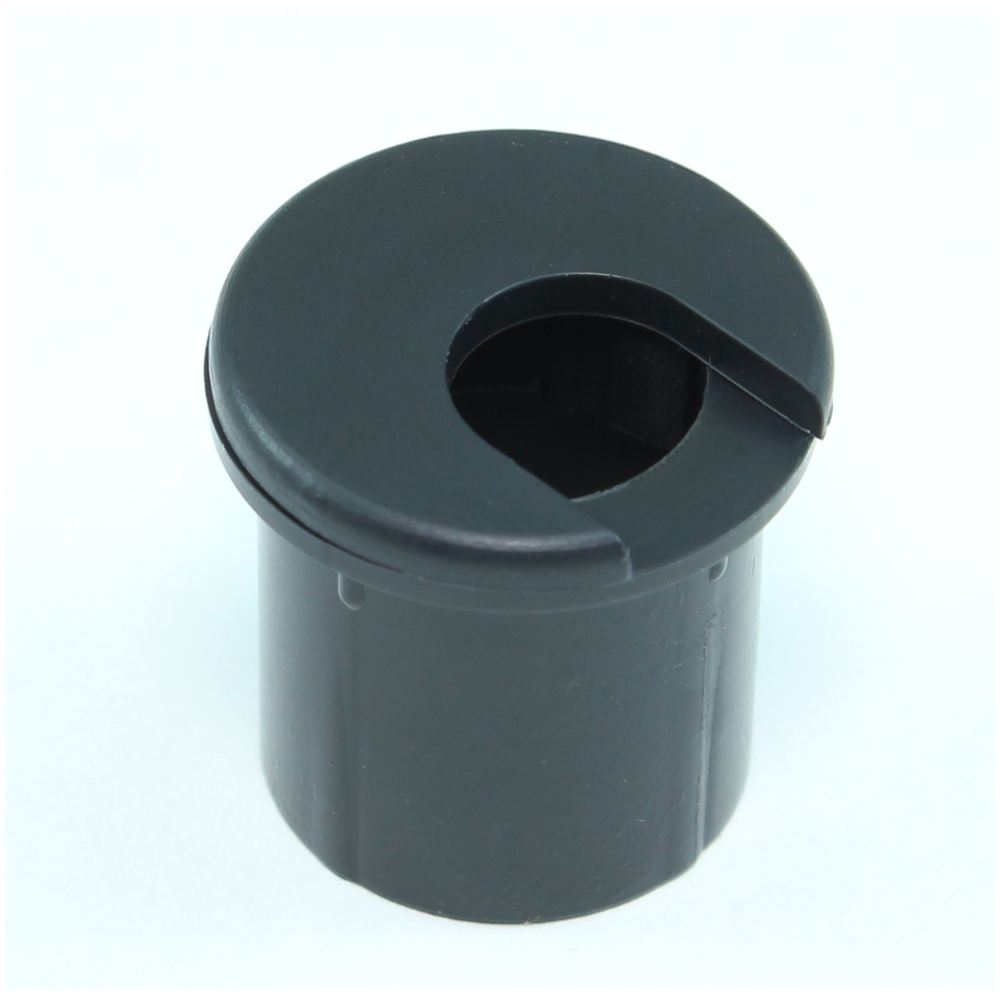

3/4" CUT-HOLE SIZE Black Round Wire Management Grommet with Removable Lid


 Lengths Available: 11/2in, 13/4in, 1in, 21/2in, 23/8in, 2in, 3in, 3/4in, 3/4in, 4in,
 Colors Available: Black, White,
 Part Numbers this model: BA-1037BK, BA-1039BK, BA-1041BK, BA-1031BK, BA-1038BK, BA-1035BK, BA-1043BK, BA-1108BK, BA-1048BK, BA-1040BK,

 Sales Category: Grommets  Wire Gauge (AWG): Not Specific / Not Applicable
 Connector A: *Not Applicable*  Specification:
 Connector B: *Not Applicable*  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 3/4 IN
# Positions: Shielding:
Convert From/To: Type:

Organize your cables with professional desk and cabinet cable-pass through grommets. Cut hole to size specified, and either press or glue into place. Due to the size, this particular 3/4 inch grommet is supplied with a lid

Specifications:
  • Cut-hole Size Required: 0.75"
  • Inside usable diameter (Approx): 0.528"
  • Grommet Outside Width: 0.75"
  • Grommet Depth: .722" (Not including grommet lip height)
  • Size Tolerances May Vary


Important Installation Note: The Grommets are manufactured to be slightly less that the hole size. This difference is by design to allow for the grommet to be inserted into the CUT hole size. These grommets after inserted into a cut hole are intended to move freely. If you need a TIGHT fit, a small amount of glue or silicon may be needed.

Please see technical drawing (Product Manual) below for size and shape details.
NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
