Do you need help to determine if this mount will work or fit your TV? As there are 1000's of TVs out on the marketplace, we unfortunately do not have a cross-reference manual that will provide that absolute information. Please click HERE to read through our FAQ which will hopefully help you to determine what critical measurements need to be made to ensure that this mount WILL properly fit your TV.

Click above image for larger image of product

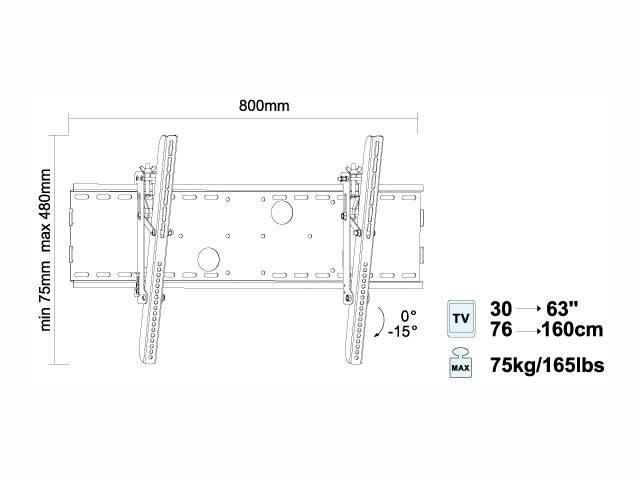

Adjustable Tilting Wall Mount Bracket for LCD Plasma (Max 165Lbs, 37-63inch) - This is an angle adjustable wall bracket for LCD or Plasma TV's. This Flat Wall Mount supports most any 37in to 63in flat panel screen and plasma TVs up to 165 lb weight that comply with VESA mounting standards.

The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for boardrooms, digital signage, or home theaters. The mount includes simple to align brackets and a unique wall plate that can be mounted to a single wood stud, two wood studs, or concrete.

Compatibility:

• Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 750x450.

• Mounting holes on television should be 28" or less apart horizontally & 18.5" or less apart vertically

• Maximum weight capacity: 165lbs/75kg

  Dimensions:

• Wall plate: 32" x 8 7/8"

• Measurements are from edge to edge. Mounting points for bolts will be shorter.

  Range of Motion:

• Tilt: 0 degrees to 15 degrees down (variable)

• Extension from wall: 4.0" when parallel to the wall

  Design & Construction:

• Solid toughened steel construction

• Durable scratch resistant

• Silver Finish

• NO Welds - solid construction

• Mount Arm Metal Thickness: .087"

• Mount Plate Metal Thickness: .083"

• Easy installation

  Included in Box:

• Mount

• Mounting hardware

• User manual

NOTE: If mounting a TV that is between 30-32 inches, be sure to measure the actual WIDTH of your TV. If it is LESS than 32 inches, some of the mount plate may be visible after mounting

Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits

Warning: This mounting bracket is not compatible with certain LG (r), PIONEER(r) and Sharp(r) brand TVs. Specifically, the following models are not compatible. Pioneer: PDP-6100HD, PRO-1410HD, PDP-614MX, PDP-6070HD, PRO-1540HD, PDP-607CMX, PRO151FD. Sharp: LC-65D93U, LC-65D90U, LC-57D90U, LC-65D64U, LG: LG52LG50-UA (use SKU MO-TVM-3004) LG52LG50 (use SKU MO-TVM-3004), Phillips 42PF9630A137 (use SKU MO-TVM-3004)

NOTICE: All returned TV mounts are subject to a 10% re-stocking fee. All TV mounts, however, have a 1 year replacement warranty (not subject to ANY restocking fee).
