Do you need help to determine if this mount will work or fit your TV? As there are 1000's of TVs out on the marketplace, we unfortunately do not have a cross-reference manual that will provide that absolute information. Please click HERE to read through our FAQ which will hopefully help you to determine what critical measurements need to be made to ensure that this mount WILL properly fit your TV.

Suitable for mounting monitors, and smaller LCD/plasma sets from 10-30in diag up to 44 lbs.

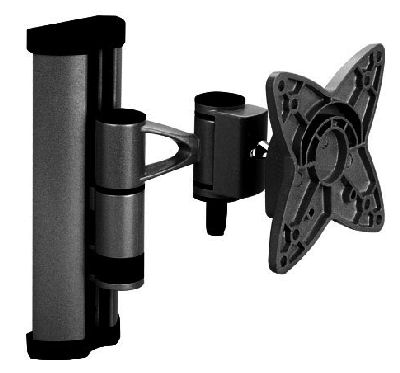

This attractive articulating wall mount features a long extention arm with a ball and socket throat that allow it to be angled in multiple directions. The sturdy wishbone style arm provides a rigid hold. The high adjustable wall assembly allows you to set it at the perfect height.

Compatibility:

Suitable for computer monitors and small LCD TV's

Will fit most small to mid-size flat panel LCD monitors with mounting VESA Standard patterns:

2.95"x2.95" (VESA 75 or 75mmx75mm) - Approx 3" square mount holes

3.93"x3.93"(VESA 100 or 100mmx100mm) - Approx 4" square mount holes

Maximum weight capacity: 33lbs/15Kgs

Important: TV's that have DIFFERENT mount patterns will need to use the adapter plate show on the right side of this screen

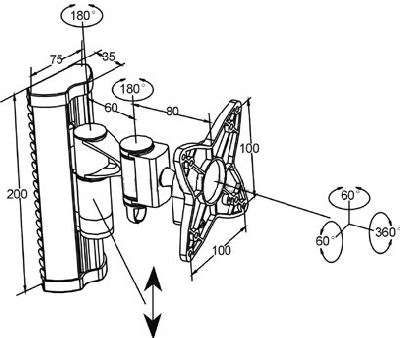

Dimensions:

Wall Mount Plate Width: 3"

Mount Plate Height: 7.9"

TV Mount Plate: Approx 4.5" x 4.5" (Square)

Measurements are from edge to edge. Mounting points for bolts will be shorter.

Range of Motion:

Tilt: 60 degrees downward and 60 degrees upward

Swivel: 180 degrees

Extension from wall: 5" to 7.4"

Arm Extension Wall to first elbow: 2.4" (approx)

Arm Extension Elbow to mounting plate: 3.2" (approx)

Adjustable Height within verticle mount housing

Design & Construction:

Solid tough steel construction

Durable scratch resistant

Black Finish

Easy installation

Included in Box:

Mount

Mounting hardware

User manual
Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits

NOTICE: All returned TV mounts are subject to a 10% re-stocking fee. All TV mounts, however, have a 1 year replacement warranty (not subject to ANY restocking fee).
