Do you need help to determine if this mount will work or fit your TV? As there are 1000's of TVs out on the marketplace, we unfortunately do not have a cross-reference manual that will provide that absolute information. Please click HERE to read through our FAQ which will hopefully help you to determine what critical measurements need to be made to ensure that this mount WILL properly fit your TV.

Simple, high quality wall mount is designed for monitors, or small flat panel displays with screens that are VESA 50/75/100/200/200x100mm. The maximum weight it can hold is 66 lbs.

Compatibility:

• Suitable for computer monitors and small LCD TV's

• Will fit most small to mid-size flat panel LCD monitors with mounting VESA Standard patterns:

• 1.96"x1.96 (VESA 50x50)

• 2.95"x2.95" (VESA 75x75)

• 3.93"x3.93"(VESA 100x100)

• 7.87"x7.87"(VESA 200x200)

• 7.87"x3.93" (VESA 200x100)

• Maximum weight capacity: 66lbs/30kg

  Dimensions:

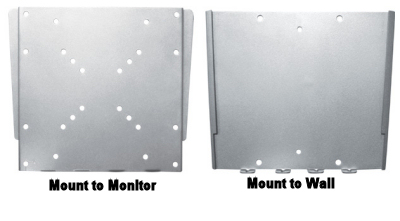

  Wall Mount Plate

• Mount plate A1 Top width: 10.4 "

• Mount plate B1 Bottom width: 9.5 "

• Mount plate height: 8.6"

• Measurements are from edge to edge. Mounting points for bolts will be shorter.

  TV Mount Plate

• TV Mount plate A2 Top width: 10 "

• TV Mount plate B2 Bottom width: 8.8"

• TV Mount plate height: 8.6"

• Measurements are from edge to edge. Mounting points for bolts will be shorter.

  Range of Motion:

• Tilt: None

• Swivel: None

• Extension from wall: 0.5"

  Design & Construction:

• Low profile design

• Solid casted steel construction

• Durable scratch resistant

• Silver Finish

• Easy installation

  Included in Box:

• Mount

• Mounting hardware (Does NOT include ALL size screws to go into back of TV)

• User manual

Note: Machine screws (M4, M6, M8, or M10 metric sized) for mounting TV panel to Mounting Bracket are NOT included.

Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits

NOTICE: All returned TV mounts are subject to a 10% re-stocking fee. All TV mounts, however, have a 1 year replacement warranty (not subject to ANY restocking fee).
