Do you need help to determine if this mount will work or fit your TV? As there are 1000's of TVs out on the marketplace, we unfortunately do not have a cross-reference manual that will provide that absolute information. Please click HERE to read through our FAQ which will hopefully help you to determine what critical measurements need to be made to ensure that this mount WILL properly fit your TV.

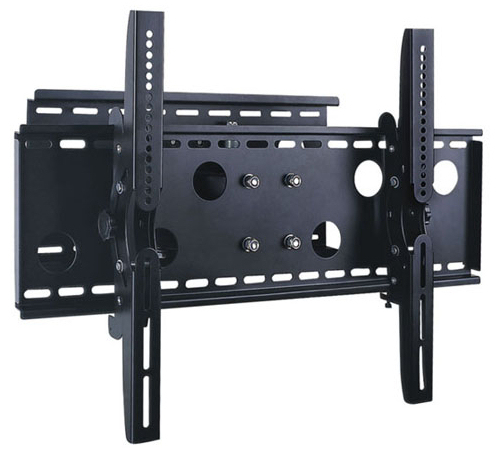

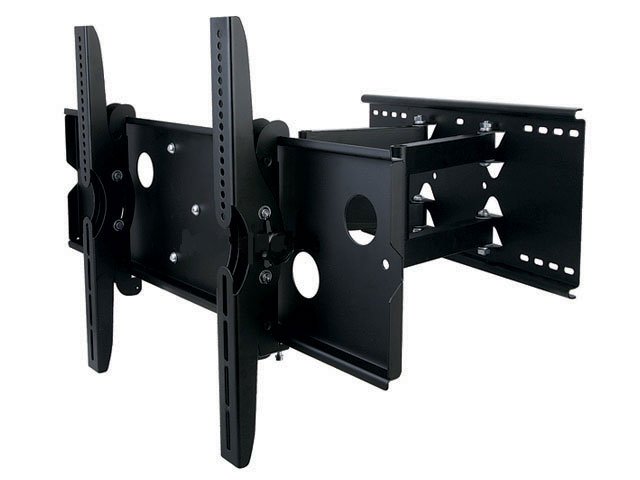

Adjustable Tilting up/down (+-15°) and Swivel left/right (+-60° each way for a total of 120 degrees depending on TV size) Wall Mount Bracket for LCD Plasma (Max 175Lbs, 32~60inch) - This is an angle adjustable wall bracket for LCD or Plasma TV's. This Flat Wall Mount supports most any 32in to 60in flat panel screen and plasma TVs up to 175 lb weight that comply with VESA mounting standards. You will not find a TV bracket for this quality ANYWHERE for this price!.

The REAR mounting plate is 19 11/16" wide. For SOME locations that have studs at a 24" gap, an additional wooden backing is recommended for mounting (not included) for larger TV sets.

The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for boardrooms, digital signage, or home theaters. The mount includes simple to align brackets and a unique wall plate that can be mounted to a single wood stud, two wood studs, or concrete.

Please carefully read the specifications below to ensure your TV will fit properly:

Compatibility:

• Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 750x450.

• Compliant to VESA standard but will NOT fit VESA 100 or lower

• Mounting holes on television should be 30" or less apart horizontally & 18.75" or less apart vertically

• Maximum weight capacity: 175lbs

• NOTE: If mounting a heavier TV (ie > 130lbs), it is not recommended that the swivel arms be fully extended.

  Dimensions:

• Wall Back mount plate: 19 11/16" x 11"

• TV Front mount plate: 32" x 9 3/8"

• Measurements are from edge to edge. Mounting points for bolts will be shorter.

• NOTE: If mounting a TV that is between 30-32 inches, be sure to measure the actual WIDTH of your TV. If it is LESS than 32 inches, some of the mount plate may be visible after mounting

  Range of Motion:

• Tilt: -15 degrees to 15 degrees (up & down)

• Swivel: -60 degrees to 60 degrees (Swivel side to side starts after slight arm extension)

• Extension from wall: 5.0" to 20" when parallel to the wall

• Mount continues to allow for left/right swivel after mounting

• Left/Right swivel can NOT be locked in place

  Design & Construction:

• Solid 2.5mm toughened steel construction

• Durable scratch resistant

• Black Finish

• NO Welds - solid construction

• Easy installation

  Included in Box:

• Mount

• Mounting hardware

• User manual

Mounting your TV onto Brick, Masonry, or Concrete?  Check out our Anchor Bolts



Product manual (Approx 2.5MB)

Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits

NOTE/CAUTION: This mount is designed and intended to be mounted using 4 supplied lag bolts into TWO studs. However, many newer homes have studs at 24" intervals. Thus hitting 2 studs using the supplied 18' mount plate can not be accomplished. TWO non-standard mounting options can be successfully used. We do NOT recommend a single stud mount for any TV over 100 lbs:
1) Drill 3/8" holes in the CENTER of the rear mount plate (top and bottom), and use SINGLE lag bolts along with supplied washers (2 total). Mounts this plate EXACTLY center of your stud. It is VITAL that the lag bolts fasten through the center of the stud. OR
2) Purchase a 3/4" thick (or thicker) piece of plywood 24x10" - attach the plywood to the 18" mount plate using nuts and bolts (not supplied), and then finally using the supplied lag bolts, attached the 24" wide plywood board to your wall.

Mounting on a SINGLE stud should only be attempted if you will be attaching the mount plate with the single stud exactly CENTER to the mount plate. Otherwise, a 2 stud mount is always recommended.

Warning: This mounting bracket is not compatible with certain LG (r), PIONEER(r) and Sharp(r) brand TVs. Specifically, the following models are not compatible. Pioneer: PDP-6100HD, PRO-1410HD, PDP-614MX, PDP-6070HD, PRO-1540HD, PDP-607CMX, PRO151FD. Sharp: LC-65D93U, LC-65D90U, LC-57D90U, LC-65D64U, LG: LG52LG50-UA, (use MO-TVM-3004) LG52LG50 (use MO-TVM-3004), Phillips 42PF9630A137 (use MO-TVM-3004)
NOTICE: All returned TV mounts are subject to a 10% re-stocking fee. All TV mounts, however, have a 1 year replacement warranty (not subject to ANY restocking fee).
