Do you need help to determine if this mount will work or fit your TV? As there are 1000's of TVs out on the marketplace, we unfortunately do not have a cross-reference manual that will provide that absolute information. Please click HERE to read through our FAQ which will hopefully help you to determine what critical measurements need to be made to ensure that this mount WILL properly fit your TV.

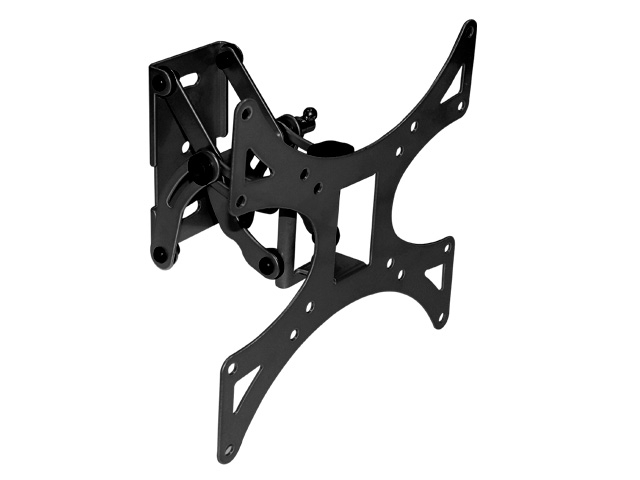

The mount allows you to tilt the display up and down about 35 degrees off center max. You can swivel it side to side up to 50 degrees off center max. And, it will retract down to a depth of 3.25" when parallel and even to the wall and extend out to a maximum of about 5.75".

It will support any display within the weight limit that has a VESA 75, 100, 200 or 200x100 compliant mounting pattern. (Vesa 75 is a square hole pattern where each hole is about 3" apart vertically and horizontally. Vesa 100 has holes that are about 4" apart. Vesa 200 are about 8" apart. Vesa 200x100 are about 8" apart horizontally and 4" apart vertically). On plate that attaches to wall, plate holes (3 of them) are 1 3/4" in a straight line, vertically.

Compatibility:

Flat panel Plasma and LCD TVs with mounting patterns of VESA 75/100/200 and 200x100

TV Mounting holes should be:

3" apart horizontally & 3" vertically (VESA 75x75),

4" apart horizontally & 4" vertically (VESA 100x100),

8" apart horizontally & 8" vertically (VESA 200x200), or

8" apart horizontally & 4" vertically (VESA 200x100)

Maximum weight capacity: 60lbs

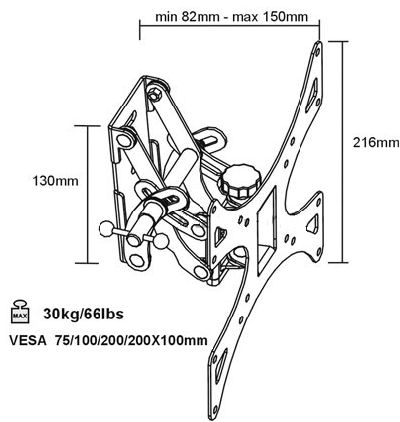

Dimensions:

Wall mount plate: 5.11" x 2.5"

TV mount plate: 8.5" x 8.5"

Measurements are from edge to edge. Mounting points for bolts will be shorter.

Range of Motion:

Tilt: 35 degrees off center

Swivel: 50 degrees off center side to side

Extension from wall: 3.25" to 5.75"

Design & Construction:

Solid toughened steel construction

Durable scratch resistant

Black Finish

Easy installation

Included in Box:

Mount

Mounting hardware: ONLY includes (4 Lag Bolts and 4 Optional Concrete Anchors)

User manual
Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits

Note: Machine screws (M6, M8, or M10 metric sized) for mounting TV panel to Mounting Bracket are NOT included.
